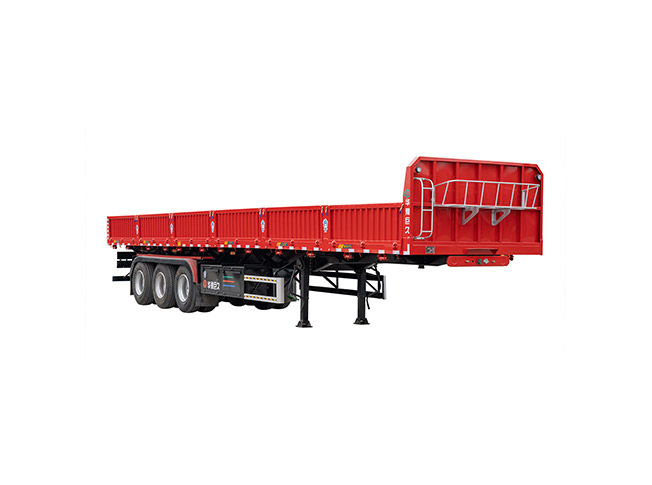

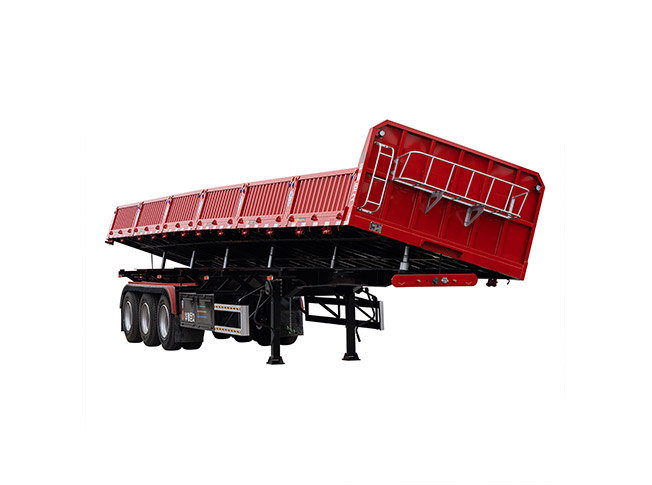

Side Tipping Semi Trailer

Product Description:

  • Material – Steel
  • Suspension – Mechanical suspension
  • Spring leaf – 13*90 standard plate, or depending on load
  • Brake Valve – Factory provided
  • Wheel rim – 9.0*22.5 , high strength
  • Chamber – Four double chambers, two single chambers
  • Unloading method – side unloading

Optional:

  • Tyre brand – CHAOYANG or by customers
  • Tyre – 11.00R20 /12R22.5 /315/80R22.5 optional
  • Axle capacity – 13T or depending on the load
  • Axle brand – FUWA/BPW optional
  • Lang gear – 28T, two speed or optional
  • Lang gear brand- YANGZHOU TONGYI or by customers
  • Suspension brand – FUWA or by customers
  • Height of side wall available
  • Length could be customized
  • 1. Material-The quality of steel is directly related to the quality of the trailer. The trailers produced by our company are all selected domestic first-class automobile steel—Shanghai BAOSTEEL high-strength steel, and are inspected strictly in accordance with the design material thickness standard to prevent "negative deviation".
  • 2. Load analysis-The trailer design adopts a three-dimensional design, and the engineer conducts a comprehensive analysis of the load of the dump semi-trailer to ensure the rationality of the entire trailer structure to the greatest extent.
  • 3. Hydraulic system-The lifting hydraulic system is stable, and the oil circuit is designed reasonably to ensure the normal progress of unloading.
