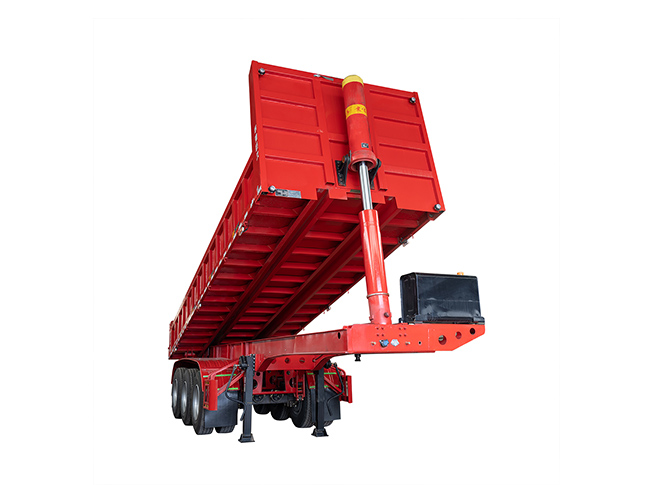

Safety - The sub-beam at the bottom of the upper box body adopts the Omega structure, which is organically combined with the frame beam, so that the bottom of the upper box body sinks in the frame. On the one hand, the height of the load-bearing surface is reduced and the center of gravity of loading is lowered. Improve the driving safety of the trailer, and at the same time, the upper box body is closely attached to the frame, which also increases the driving stability of the trailer.
Stability - The frame adopts lightweight design, simple structure, combined with the use of Shanghai BAOSTEEL B750LD high-strength steel, light weight. In the key part, the use of scissor support (so the material B750LD\CP980\780FC and other high-strength plates and double web structure, while reducing the weight, ensuring the structural strength, increasing the stability of the box lifting, combined with the low center of gravity of the box The advantage of this greatly reduces the risk of rollover when the cabinet is lifted
Durability - The bottom and side panels of the upper box are designed with Shanghai BAOSTEEL zinc-iron alloy JAC780/590 high-strength steel. Because high-strength steel has the advantages of wear-resistant, corrosion-resistant, rust-proof and impact resistance, it is especially suitable for the bottom and side panels of the box. In order to reduce the weight of the trailer, the floor and sides are designed to be thinner, but the overall strength is not reduced by using high-strength steel.
Flexibility - The trailer adopts light leaf spring suspension, light weight and good flexibility.
